Feekoon 8 Pack SS2 Float Switch L Shape for Easy Installation, AC Float Switch with 3/4 Inch Adaptor and 6ft wire, Water Level Accessory for Air Conditioner with Condensate Overflow Detection
Product details
| Management number | 218530763 | Release Date | 2026/05/03 | List Price | $30.54 | Model Number | 218530763 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- SS2 Float Switch Function: SS2 water level switch is applied in Air Conditioner systems to detect condensation water overflow; It detects blockage of air conditioning condensate water drain pipe and shuts down the system to prevent overflowing water from damaging floors, walls, and ceilings

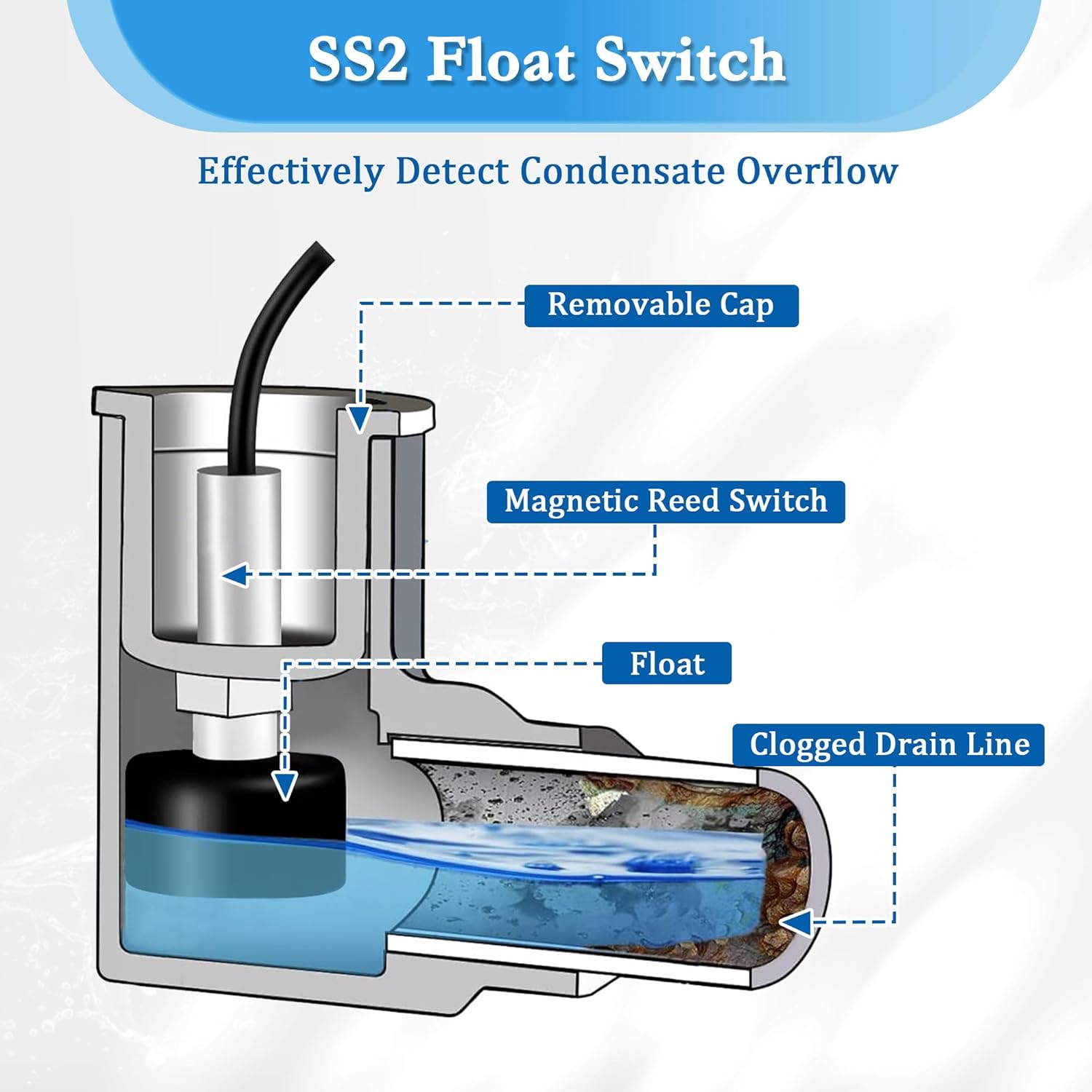

- Working Principle: the SS2 float switch can be connected to a VCC or thermostat line; It is an NC type (normally closed) switch: when no water overflows, the float stays at the bottom of the switch, the switch closes the loop and outputs an ON signal; When the water overflows, the buoyancy of the float rises, the trigger switch turns on, and the output OFF signal turns off

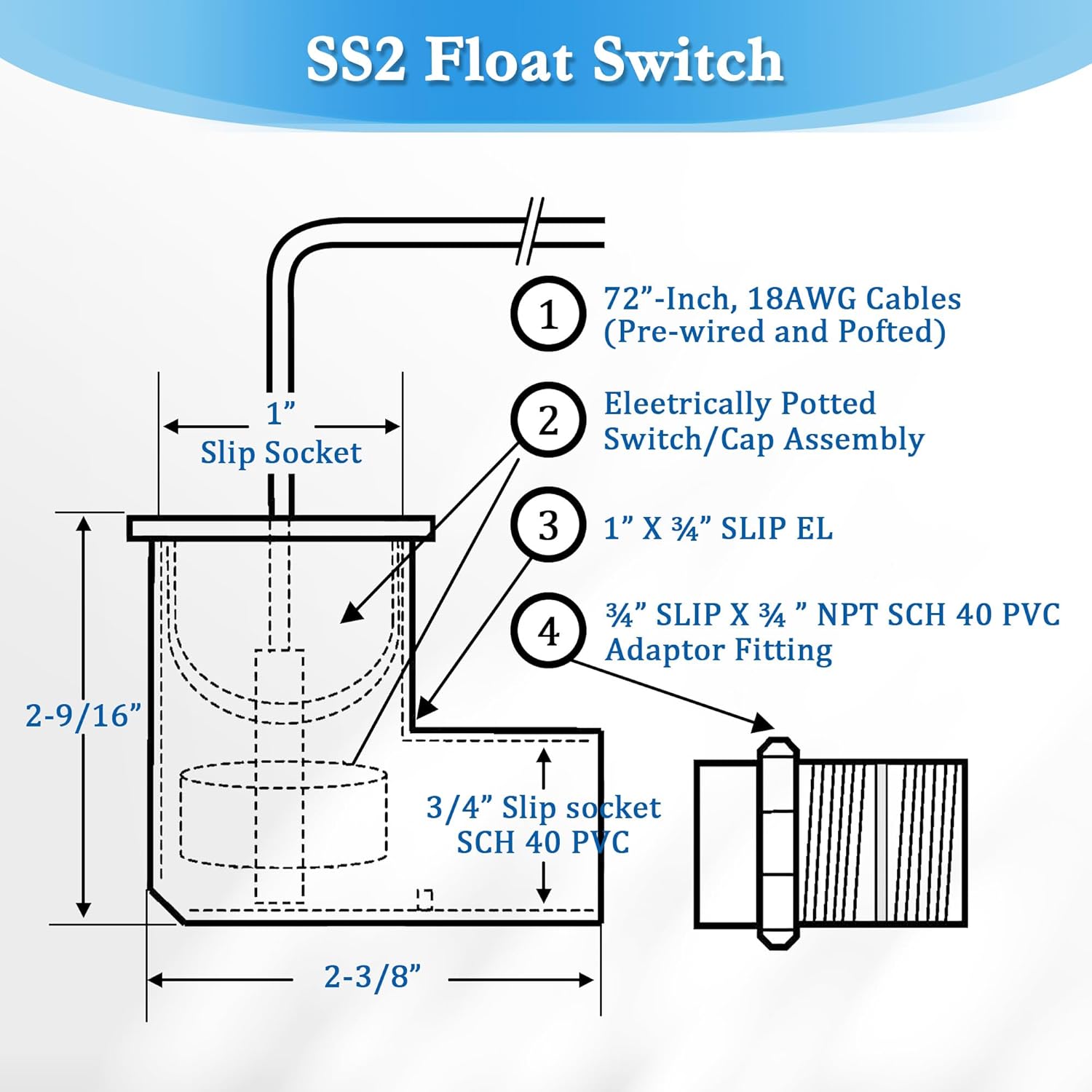

- Specifications: switch type NC (normally closed), material PVC, operating temperature -20 - +80℃, wire length 5.8ft, switching voltage max; 200VDC; Switching current max; 1 A contact rating maximum 10W

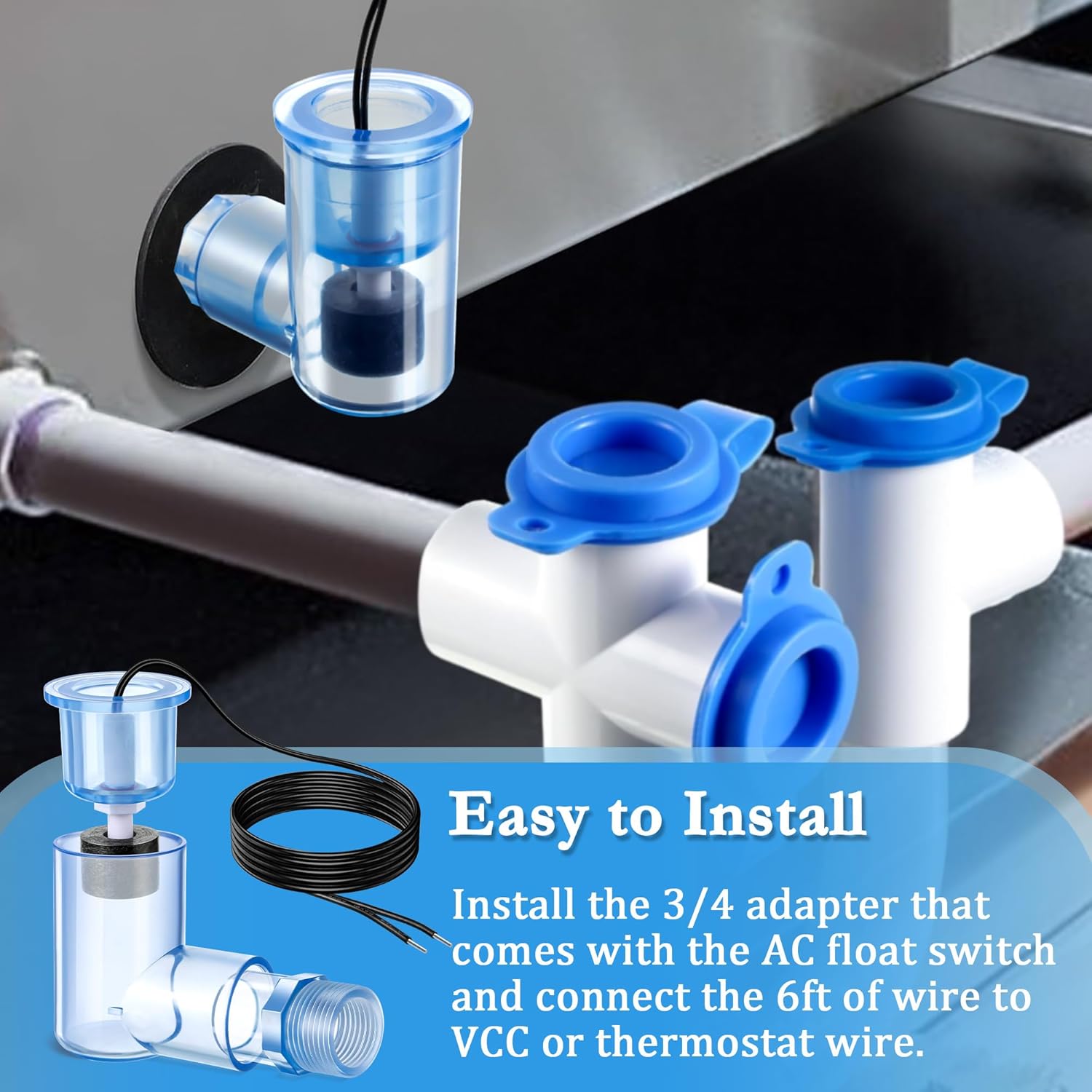

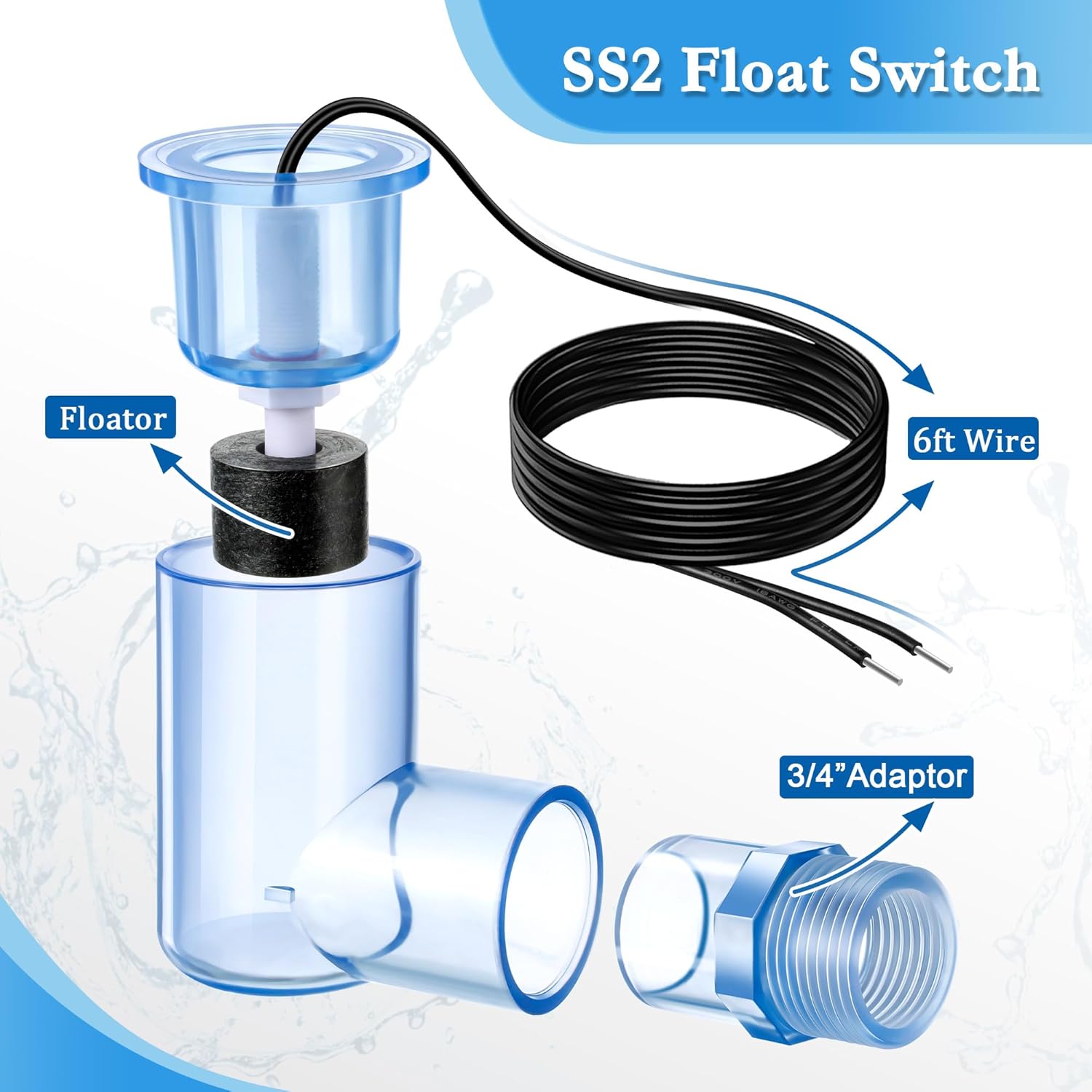

- Easy to Install: this float switch is easy to install, all you need to do is install the 3/ 4 adapter that comes with the AC float switch on the auxiliary drain outlet of the main panel and connect the 5.8ft of wire to VCC or thermostat wire

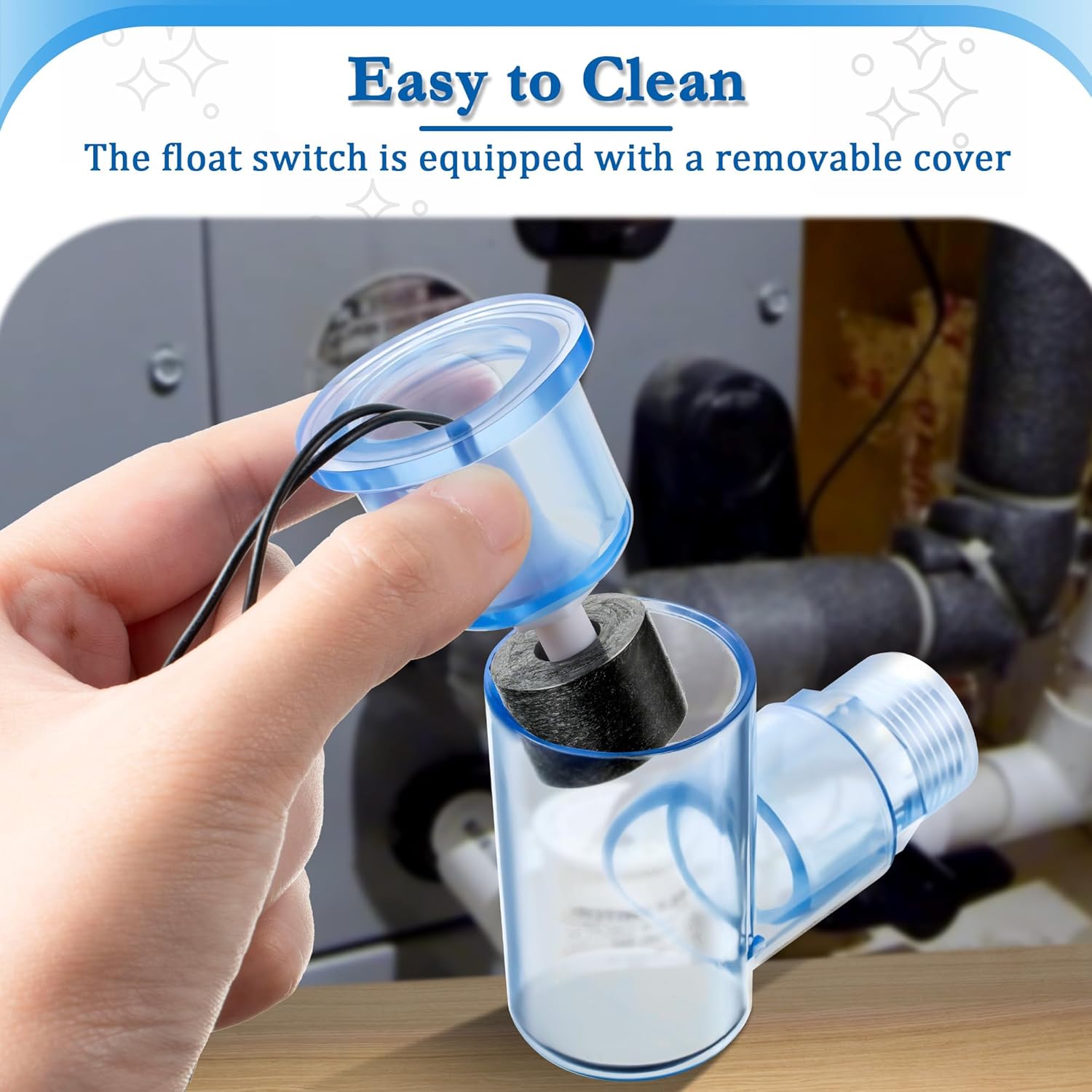

- Easy to Clean: the transparent material allows you to see what's going on inside; The float switch is equipped with a removable cover; When you use it for some time, you can remove it for cleaning to ensure hygiene and normal function
| Color | as shown |
|---|---|
| Item Weight | 2.22 pounds |
| Part Number | DC-Feekoon-0930 |
| Manufacturer | Feekoon |
| Item model number | DC-Feekoon-0930 |
| Batteries Required | No |
| Product Dimensions | 8.66 x 8.27 x 1.89 inches |
| Included Components | as shown |
| Item Package Quantity | 8 |
